Deep Dives
DynamoDB
Learn how to use DynamoDB in a wide variety of system design settings.
Intro
DynamoDB is a fully-managed, highly scalable, key-value service provided by AWS. Cool, buzz-words. But what the hell does that mean and why does it matter?
- Fully-Managed - This means that AWS takes care of all the operational aspects of the database. The fully-managed nature allows AWS to handle all operational tasks — hardware provisioning, configuration, patching, and scaling — freeing developers to concentrate on application development.
- Highly Scalable - DynamoDB can handle massive amounts of data and traffic. It automatically scales up or down to adjust to your application's needs, without any downtime or performance degradation.
- Key-value - DynamoDB is a NoSQL database, which means it doesn't use the traditional relational database model. Instead, it uses a key-value model that allows for flexible data storage and retrieval.
The moral of the story is that DynamoDB is a super easy to use and can scale to support a wide variety of applications. For system design interviews in particular, it has just about everything you'd ever need from a database. It even supports transactions now! Which neutralizes one of the biggest criticisms of DynamoDB in the past.
Importantly, DynamoDB is not open-source, so we can't as easily describe its internals like we did with breakdowns of open source technologies like Kafka and Redis. Instead, we'll focus more on you interact with it. In order to look under the hood, we'll rely on the limited information AWS provides via documentation and the DynamoDB Whitepaper.
In this deep dive, we'll break down exactly what you need to know about DynamoDB in order to field any question about it in a system design interview. Along the way, you'll also acquire practical learning that you can later apply in your own projects. Let's break it down!
The Data Model
In DynamoDB, data is organized into tables, where each table has multiple items that represent individual records. This is just like a relational database, but with some distinct differences tailored for scalability and flexibility.
Tables - Serve as the top-level data structure in DynamoDB, each defined by a mandatory primary key that uniquely identifies its items. Tables support secondary indexes, enabling queries on non-primary key attributes for more versatile data retrieval.
Items - Correspond to rows in a relational database and contain a collection of attributes. Each item must have a primary key and can contain up to 400KB of data, including all its attributes.
Attributes - Key-value pairs that constitute the data within an item. They can vary in type, including scalar types (strings, numbers, booleans) and set types (string sets, number sets). Attributes can also be nested, allowing for complex data structures within a single item.

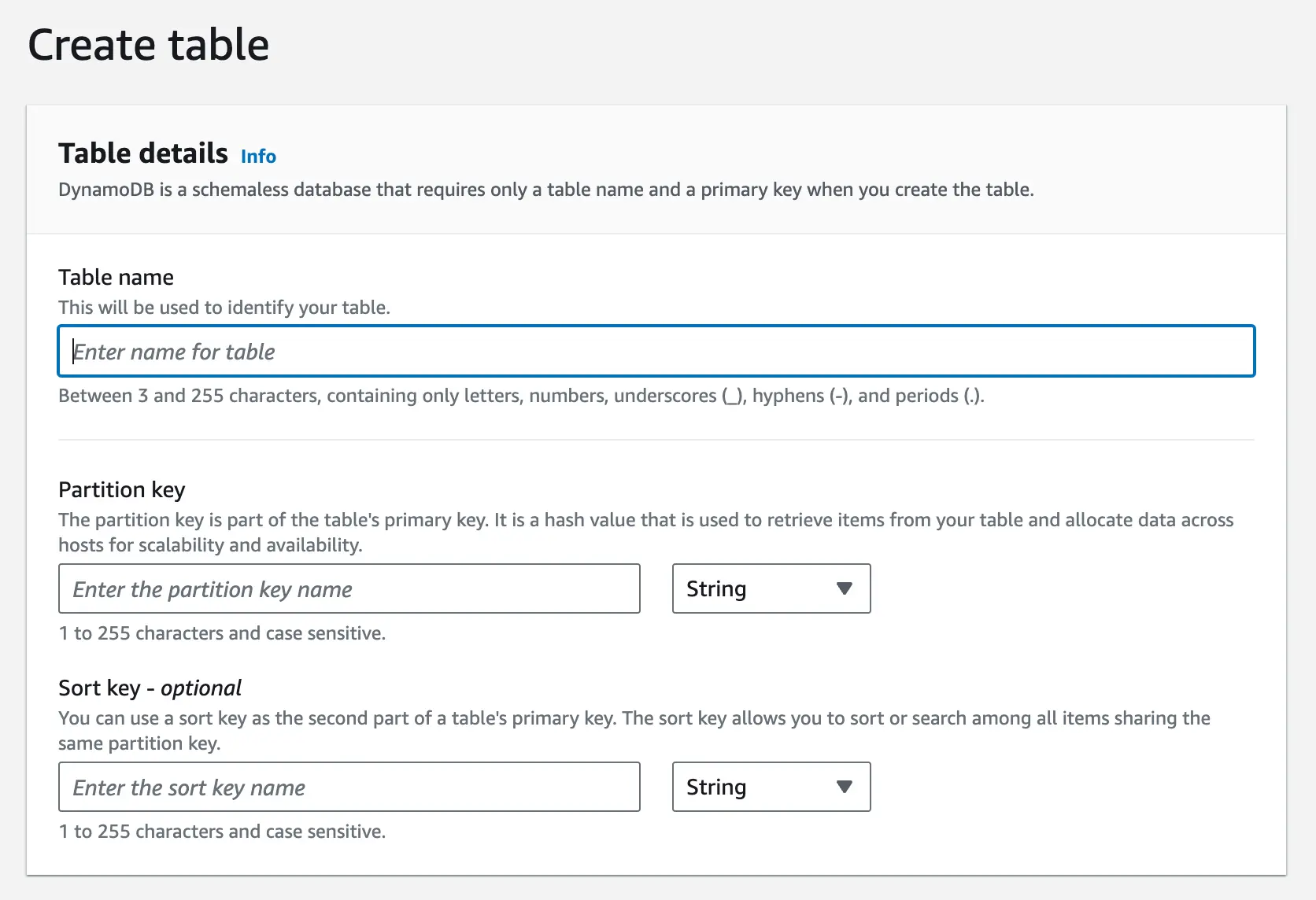

Setting up DynamoDB is straightforward: you can create tables directly in the AWS console, and start inserting data immediately. Unlike traditional RDBMS, DynamoDB is schema-less, meaning you don't need to define a schema before inserting data. This means items in the same table can have different sets of attributes, and new attributes can be added to items at any point without affecting existing items. This schema-less design provides high flexibility but requires careful data validation at the application level, as DynamoDB does not enforce attribute uniformity across items.
![Create Table](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fdynamo-create-table.71d9a974.png&w=3840&q=75)
Consider a users table in DynamoDB, structured as follows:
{ "PersonID": 101, "LastName": "Smith", "FirstName": "Fred", "Phone": "555-4321" }, { "PersonID": 102, "LastName": "Jones", "FirstName": "Mary", "Address": { "Street": "123 Main", "City": "Anytown", "State": "OH", "ZIPCode": 12345 } }, { "PersonID": 103, "LastName": "Stephens", "FirstName": "Howard", "Address": { "Street": "123 Main", "City": "London", "PostalCode": "ER3 5K8" }, "FavoriteColor": "Blue" }
Each item represents a user with various attributes. Notice how some users have attributes not shared by others, like FavoriteColor, showing DynamoDB's flexibility in attribute management.
Partition Key and Sort Key
DynamoDB tables are defined by a primary key, which can consist of one or two attributes:
Partition Key - A single attribute that uniquely identifies each item in the table. DynamoDB uses the partition key's value to determine the physical location of the item within the database. This value is hashed to determine the partition where the item is stored.
Sort Key (Optional) - An additional attribute that, when combined with the partition key, forms a composite primary key. The sort key is used to order items with the same partition key value, enabling efficient range queries and sorting within a partition.
In an interview, you'll want to be sure to specify the partition key and, optionally, a sort key when introducing DynamoDB. This choice is important for optimizing query performance and data retrieval efficiency. Just like with any other database, you'll choose a partition key that optimizes for the most common query patterns in your application and keeping data evenly distributed across partitions. In the case you need to perform range queries or sorting, you'll want to also specify the Sort Key.
For example, if you're building a simple group chat application, it would make sense to use the chat_id as the partition key and timestamp as the sort key. This way, you can efficiently query all messages for a specific chat group and sort them by timestamp before displaying them to users.
But what is actually happening under the hood?
DynamoDB uses a combination of consistent hashing and B-trees to efficiently manage data distribution and retrieval:
Consistent Hashing for Partition Keys:
- The partition key is hashed using a consistent hashing function.
- This hash value determines which physical node (or partition) in the DynamoDB cluster will store the item.
- Consistent hashing ensures even distribution of data across nodes and facilitates easy scaling.
B-trees for Sort Keys:
- Within each partition, items are organized using a B-tree data structure, which is a self-balancing tree stored on disk.
- The B-tree is indexed on the sort key, allowing for efficient range queries and sorted retrieval.
- This structure enables quick lookups, insertions, and deletions within a partition.
Composite Key Operations:
- When querying with both partition and sort keys, DynamoDB first uses the partition key's hash to locate the correct node.
- It then traverses the B-tree on that node using the sort key to find the specific item or range of items.
This two-tier approach allows DynamoDB to achieve both horizontal scalability (through partitioning) and efficient querying within partitions (through B-tree indexing). It's this combination that enables DynamoDB to handle massive amounts of data while still providing fast, predictable performance for queries using both partition and sort keys.
Secondary Indexes
But what if you need to query your data by an attribute that isn't the partition key? This is where secondary indexes come in. DynamoDB supports two types of secondary indexes:
Global Secondary Index (GSI) - An index with a partition key and optional sort key that differs from the table's partition key. GSIs allow you to query items based on attributes other than the table's partition key.
Local Secondary Index (LSI) - An index with the same partition key as the table's primary key but a different sort key. LSIs enable range queries and sorting within a partition, providing an alternative to GSIs when querying items with the same partition key.
Practically, in both cases, these indexes are just configured in the AWS console or via the AWS SDK. DynamoDB handles the rest, ensuring that these indexes are maintained and updated as data changes.
You'll want to introduce a GSI in situations where you need to query data efficiently by an attribute that isn't the partition key. For example, if you have a chat table with messages for your chat application, then your main table's partition key would likely be chat_id with a sort key on timestamp. This way, you can easily get all messages for a given chat sorted by time. But what if you want to show users all the messages they've sent across all chats? Now you'd need a GSI with a partition key of user_id and (optionally) a sort key on timestamp.
LSIs are useful when you need to perform range queries or sorting within a partition on a different attribute than the sort key. Going back to our chat application, we already can sort by timestamp within a chat group, but what if we want to query all messages by a specific user within a chat group? We could create an LSI on the user_id attribute to facilitate those queries.
Global Secondary Index (GSI) | Local Secondary Index (LSI) | |
---|---|---|
Definition | Index with a different partition key than the main table | Index with the same partition key as the main table but a different sort key |
When to Use | When you need to query on attributes that are not part of the primary key | When you need additional sort keys for querying within the same partition key |
Size Restrictions | No size restrictions on items in the index | Limited to 10 GB per partition key |
Throughput | Separate read/write capacity units from the base table | Shares the read/write capacity units of the base table |
Consistency | Can be eventually consistent or strongly consistent | Always strongly consistent, same as the base table |
Deletion | Deleting a GSI does not affect the base table items | Deleting an LSI is not possible without deleting the base table |
Maximum Count | Up to 20 GSIs per table | Up to 5 LSIs per table |
Use Case Examples | Use GSI for global search across all partitions, such as searching by email in a user database | Use LSI for local search within partitions, such as finding recent orders within a customer partition |
But what is actually happening under the hood?
Secondary indexes in DynamoDB are implemented as separate tables that are automatically maintained by the system:
Global Secondary Indexes (GSIs):
- Each GSI is essentially a separate table with its own partition scheme.
- When an item is added, updated, or deleted in the main table, DynamoDB asynchronously updates the GSI.
- GSIs use the same consistent hashing mechanism as the main table, but with different partition and sort keys.
- This allows for efficient querying on non-primary key attributes across all partitions.
Local Secondary Indexes (LSIs):
- LSIs are co-located with the main table's partitions, sharing the same partition key.
- They maintain a separate B-tree structure within each partition, indexed on the LSI's sort key.
- Updates to LSIs are done synchronously with the main table updates, ensuring strong consistency.
Index Maintenance:
- DynamoDB automatically propagates changes from the main table to all secondary indexes.
- For GSIs, this propagation is eventually consistent, while for LSIs it's strongly consistent.
- The system manages the additional write capacity required for index updates.
Query Processing:
- When a query uses a secondary index, DynamoDB routes the query to the appropriate index table (for GSIs) or index structure (for LSIs).
- It then uses the index's partition and sort key mechanics to efficiently retrieve the requested data.
Accessing Data
We've already touched on this a bit, but let's dive deeper into how you can access data in DynamoDB. There are two primary ways to access data in DynamoDB: Scan and Query operations.
Scan Operation - Reads every item in a table or index and returns the results in a paginated response. Scans are useful when you need to read all items in a table or index, but they are inefficient for large datasets due to the need to read every item and should be avoided if possible.
Query Operation - Retrieves items based on the primary key or secondary index key attributes. Queries are more efficient than scans, as they only read items that match the specified key conditions. Queries can also be used to perform range queries on the sort key.
Unlike with SQL, Dynamo does not have structured query language. Instead, you'll use the AWS SDK or the AWS console to interact with the database. Let's consider a simple example of querying from a user table.
In SQL, you'd write:
SELECT * FROM users WHERE user_id = 101
But in DynamoDB, this would be translated to a query operation like this:
const params = { TableName: 'users', KeyConditionExpression: 'user_id = :id', ExpressionAttributeValues: { ':id': 101 } }; dynamodb.query(params, (err, data) => { if (err) console.error(err); else console.log(data); });
To perform a scan operation, you'd use the scan method instead of query.
SQL scan equivalent:
SELECT * FROM users
DynamoDB scan operation:
const params = { TableName: 'users' }; dynamodb.scan(params, (err, data) => { if (err) console.error(err); else console.log(data); });
When working with Dynamo, you typically want to avoid expensive scan operations where ever possible. This is where careful data modeling comes into play. By choosing the right partition key and sort key, you can ensure that your queries are efficient and performant.
CAP Theorem
You'll typically make some early decisions about consistency and availability during the non-functional requirements phase of your interview. As such, it's important that you choose a database that aligns with those requirements.
Most candidates I work with choose DynamoDB when they need high availability and scalability. This isn't wrong, but just like the traditional SQL vs NoSQL debate, it's outdated.
As of late 2018, DynamoDB now supports transactions. So, it can be configured to support two different consistency models: eventual consistency and strong consistency.
Eventual Consistency - This is the default consistency model in DynamoDB. It provides the highest availability and lowest latency, but it can result in stale reads. This means that if you write data and then immediately read it, you might not see the updated data right away. With this configuration, Dynamo is a AP system displaying BASE properties.
Strong Consistency - This model ensures that all reads reflect the most recent write. This comes at the cost of higher latency and potentially lower availability. With this configuration, Dynamo is an CP system displaying ACID properties.
Again, this is just a simple configuration change in the AWS console or via the SDK and means that you can use DynamoDB in a wide variety of scenarios, including those where strong consistency is required like in a banking application or ticket booking system.
But what is actually happening under the hood?
DynamoDB's consistency models are implemented through its distributed architecture and replication mechanisms:
Data Replication:
- DynamoDB replicates data across multiple nodes in different Availability Zones within a region (more on this in a second)
- Each item is typically replicated to at least three nodes.
Eventual Consistency:
- Write operations are considered successful when acknowledged by a majority of replicas.
- Reads may be served by any replica, which might not have the latest update yet.
- Background processes continuously synchronize data across replicas.
Strong Consistency:
- Strongly consistent reads are routed to the leader node for the partition.
- The leader ensures it has the most up-to-date data before responding.
- This may involve waiting for replication to complete or querying other nodes.
Quorum-Based Approach:
- DynamoDB uses a quorum-based system for both reads and writes.
- For writes, a quorum of nodes must acknowledge the write for it to be considered successful.
- For strongly consistent reads, a quorum of nodes is queried to ensure the latest data is retrieved.
Conflict Resolution:
- In case of conflicts (e.g., simultaneous writes to different replicas), DynamoDB uses a "last writer wins" approach based on timestamps.
Transaction Support:
- For transactions, DynamoDB uses a two-phase commit protocol across multiple partitions.
- This ensures that all parts of a transaction are completed atomically.
Architecture and Scalability
Scalability
DynamoDB scales through auto-sharding and load balancing. When a server reaches capacity, data is automatically redistributed. Consistent hashing ensures even distribution across nodes, balancing traffic and load.
AWS's global infrastructure enhances this scalability. Global Tables allow real-time replication across regions, enabling local read/write operations worldwide. This reduces latency and improves user experience. DynamoDB also integrates across multiple Availability Zones in each region, so that the redundancy ensures continuous service and data durability.
Choosing the right regions and zones is important because it optimizes performance and compliance, considering user proximity and regulations. Data locality, in general, is key for reducing latency and improving throughput.
When designing global applications in your interview, simply mentioning Global Tables for cross-region replication is often sufficient.
Fault Tolerance and Availability
DynamoDB is designed to provide high availability and fault tolerance through its distributed architecture and data replication mechanisms. The service automatically replicates data across multiple Availability Zones within a region, so that data is durable and accessible even in the event of hardware failures or network disruptions.
You can easily configure the redundancy level of your data by specifying the number of read and write replicas for each table. This allows you to maintain multiple copies of your data in different Availability Zones, enhancing data durability and availability.
Under the hood, DynamoDB uses a combination of synchronous and asynchronous replication to ensure data consistency and durability. Write operations are first written to a primary replica in a single Availability Zone and then asynchronously replicated to secondary replicas in other Zones. This approach provides a balance between low latency and high availability, ensuring that data is always accessible and up-to-date.
Security
Data is encrypted at rest by default in DynamoDB, so your data is secure even when it's not being accessed. You can also enable encryption in transit to ensure that data is encrypted as it moves between DynamoDB and your application.
DynamoDB integrates with AWS Identity and Access Management (IAM) to provide fine-grained access control over your data. You can create IAM policies that specify who can access your data and what actions they can perform. This allows you to restrict access to your data to only those who need it.
Additionally, you can use Virtual Private Cloud (VPC) endpoints to securely access DynamoDB from within your VPC without exposing your data to the public internet. This provides an extra layer of security by ensuring that your data is only accessible from within your VPC.
Pricing Model
Pricing might seem like something totally irrelevant to an interview, but bear with me, understanding the pricing model introduces clear constraints on your architecture.
There are two pricing models for DynamoDB: on-demand and provisioned capacity. On-demand pricing charges per request, making it suitable for unpredictable workloads. Provisioned capacity, on the other hand, requires users to specify read and write capacity units, which are billed hourly. This model is more cost-effective for predictable workloads but may result in underutilized capacity during low-traffic periods.
Pricing is based on, what Amazon calls, read and write capacity units. These units are a measure of the throughput you need for your DynamoDB table. You can think of them as a measure of how much data you can read or write per second.
A single read capacity unit allows you to read up to 4KB of data per second. A single write capacity unit allows you to write up to 1KB of data per second.
Feature | Cost | Details |
---|---|---|
Read Capacity Unit (RCU) | $1.12 per million reads (4KB each) | Provides one strongly consistent read per second for items up to 4KB, or two eventually consistent reads per second. |
Write Capacity Unit (WCU) | $5.62 per million writes (1KB each) | Provides one write per second for items up to 1KB. |
While cost itself is not particularly interesting in an interview, it's useful to have a high level understanding of the numbers. An AWS shard supports 1,000 read capacity units and 1,000 write capacity units. This means that a single shard can support 4MB of reads per second and 1MB of writes per second. While the sharding and auto-scaling will happen automatically, it can be useful to use these numbers to gut check whether your application will be able to handle the expected load without incurring unrealistic costs.
For example, if you were planning on storing YouTube views in Dynamo, you may calculate that each item is just a userId, videoId, and timestamp which is about 100 bytes. This means that you could store 10,000 views per second on a single shard. If you expect to have 10,000,000 views per second, you'd need ~1,000 shards to support the write load or about $50,000,000 /day 😬. Given the constraints of the interview, this could be fine, but it also may necessitate your consideration of a different solution like batching or an in-memory data store.
Advanced Features
DAX (DynamoDB Accelerator)
Fun fact, Dynamo comes with a built-in, in-memory cache called DynamoDB Accelerator (DAX). So there may be no need to introduce additional services (Redis, MemchacheD) into your architecture, just enable DAX.
DAX is a caching service designed to enhance DynamoDB performance by delivering sub-millisecond response times for read-heavy workloads. Being native to DynamoDB, DAX requires no changes to application code; it simply needs to be enabled on your tables.
It operates as both a read-through and write-through cache, which means it automatically caches read results from DynamoDB tables and delivers them directly to applications, as well as writes data to both the cache and the underlying DynamoDB table. Cached items are invalidated when the corresponding data in the table is updated or when the cache reaches its size limit. For more details on DAX's read-through and write-through capabilities, you can refer to this AWS blog post.
DAX can be configured as either an item cache or a query cache. An item cache stores the results of GetItem operations, while a query cache stores the results of Query and Scan operations. Similar to DynamoDB, DAX can also be configured for either eventual or strong consistency to meet your system’s specific requirements.
Streams
Dynamo also has built-in support for Change Data Capture (CDC) through DynamoDB Streams. Streams capture changes to items in a table and make them available for processing in real-time. Any change event in a table, such as an insert, update, or delete operation, is recorded in the stream as a stream record to be consumed by downstream applications.
This can be used for a variety of use cases, such as triggering Lambda functions in response to changes in the database, maintaining a replica of the database in another system, or building real-time analytics applications.
Consistency with Elasticsearch - DynamoDB Streams can be used to keep an Elasticsearch index in sync with a DynamoDB table. This is useful for building search functionality on top of DynamoDB data.
Real-time Analytics - By processing DynamoDB Streams with Kinesis Data Firehose, you can load data into Amazon S3, Redshift, or Elasticsearch for real-time analytics.
Change Notifications - You can use DynamoDB Streams to trigger Lambda functions in response to changes in the database. This can be useful for sending notifications, updating caches, or performing other actions in response to data changes.
DynamoDB in an Interview
When to use It
In interviews, you can often justify using DynamoDB for almost any persistence layer needs. It’s highly scalable, durable, supports transactions, and offers sub-millisecond latencies. Additional features like DAX for caching and DynamoDB Streams for cross-store consistency make it even more powerful. So if your interviewer allows, its probably a great option.
However, it’s important to know when not to use DynamoDB because of its specific downsides.
Knowing its limitations
There are a few reasons why you may opt for a different database (beyond just generally having more familiarity with another technology):
Cost Efficiency: DynamoDB's pricing model is based on read and write operations plus stored data, which can get expensive with high-volume workloads. If you need hundreds of thousands of writes per second, the cost might outweigh the benefits.
Complex Query Patterns: If your system requires complex queries, such as those needing joins or multi-table transactions, DynamoDB might not cut it. It's great for basic queries but struggles with more intricate operations.
Data Modeling Constraints: DynamoDB demands careful data modeling to perform well, optimized for key-value and document structures. If you find yourself frequently using Global Secondary Indexes (GSIs) and Local Secondary Indexes (LSIs), a relational database like PostgreSQL might be a better fit.
Vendor Lock-in: Choosing DynamoDB means locking into AWS. Many interviewers will want you to stay vendor-neutral, so you may need to consider open-source alternatives to avoid being tied down.
Summary
There we have it. DynamoDB is versatile, powerful, and a joy to work with. In an interview, it's a solid choice for most use cases, but you'll want to be aware of its limitations and have a solid understanding of how it works, including how to choose the right data model, partition key, sort key, secondary indexes, and know when to enable advanced features like DAX and Streams. Lastly, remember DynamoDB even supports ACID properties and transactions, so the old SQL vs. NoSQL debate is old news.
